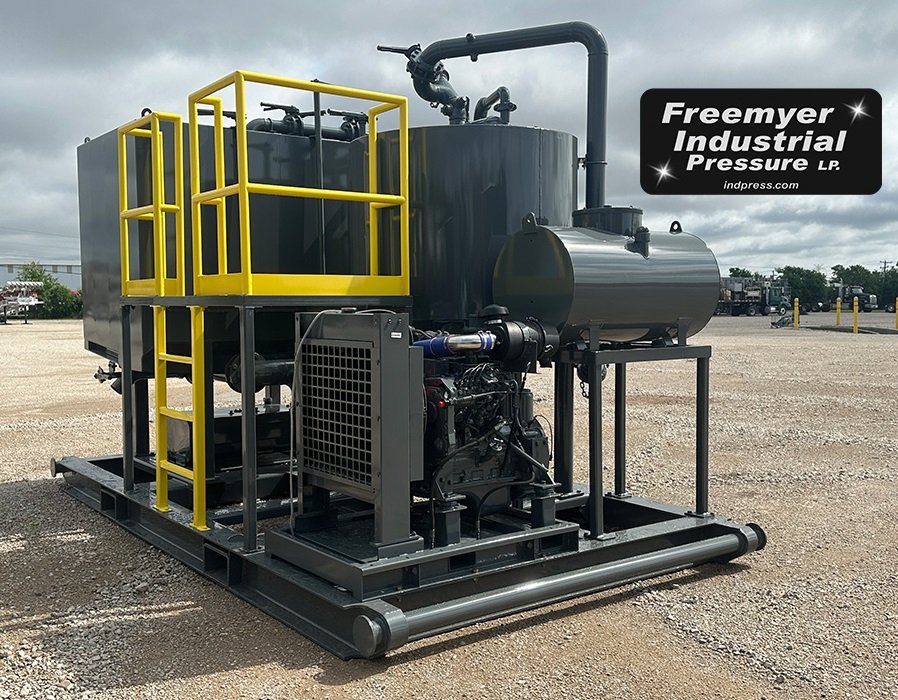

New FIP P&A Mixing Skids

$0.00

  • Power: Engine: 100 Horsepower Diesel

  • Tanks:

    • Displacement Tanks:  Two (2) tanks, each with a capacity of 10 barrels

    • Mixing Tank: One (1) tank with a capacity of 12 barrels

    • Fuel Tank: 50-gallon capacity

    • Hydraulic Tank: 80-gallon capacity

  • Centrifugal Pumps:

    • One (1): 5x6 Gardner Denver (Recirculation & Boost)

    • One (1): 4x5 Serva (Mix & Load)

  • Additional Components:

    • Battery Box

    • Work Platform: Included for manual operation of valves and easy access to mechanical gauges and engine control panels.

  •  Piping and Valves:

    • Piping: Equipped with butterfly valves for controlled flow

    • Valve Operation: Manual, accessible from the work platform

    • Tank Drains: Operated separately from the work platform.

  • Control and Monitoring:

  • Mechanical Gauges: Located on the platform for easy monitoring.

  • Engine Control Panels: Situated on the platform for straightforward operation by the operator.

  • Based on Continued Availability
